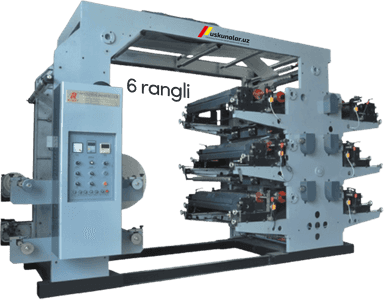

Name: Flexible printing machine US-YT-61000
SKU: 830
Availability: PreOrder

This US-YT-61000 model printer has a printing capacity of 5 to 50 meters per minute depending on the size of the product. In the description below, there are also other models of this equipment and equipment distinguished by color numbers. Their prices differ from each other. The weight of the equipment of this model is 4500 kg, and the size is 3.9 * 2.06 * 2.95 m.

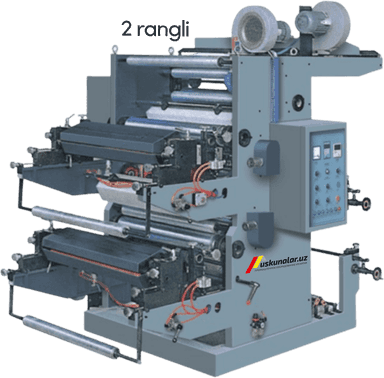

6 colors	4 colors	2 colors

Model	Max. material width	Max. printing width	Printing speed	Thickness of plate	Total power	Weight	Dimension
US-YT-61000	1000 mm	960 mm	5-50 m/min	2.38 mm	18 kW	4500 kg	*3.9 2.06 * 2.95 m**
US-YT-6800	800 mm	760 mm			15 kW	4200 kg	3.9 * 1.86 * 2.95 m
US-YT-6600	600 mm	560 mm			13 kW	4000 kg	3.9 * 1.66 * 2.95 m
US-YT-41000	1000 mm	960 mm			14.37 kW	3500 kg	4.2 * 2.0 * 2.4 m
US-YT-4800	800 mm	760 mm			12.5 kW	3200 kg	4.2 * 1.8 * 2.4 m
US-YT-4600	600 mm	560 mm			10.87 kW	3000 kg	4.2 * 1.6 * 2.4 m
US-YT-21000	1000 mm	960 mm			12 kW	1800 kg	2.3 * 2.26 * 2.145 m
US-YT-2800	800 mm	760 mm			10 kW	1500 kg	2.3 * 2.06 * 2.145 m
US-YT-2600	600 mm	560 mm			8 kW	1200 kg	2.3 * 1.86 * 2.145 m
