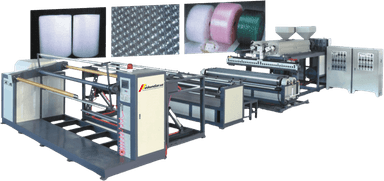

Name: 2 layer air bubble film machine (2 screw) US-XYPE-2LB-1200
SKU: 846
Availability: PreOrder

This US-XYPE-2LB-1200 equipment is used for the production of 2-layer bubble film, which belongs to the line of polyethylene products. LDPE and LLDPE raw materials are used in product production. The maximum width of the film is 1200 mm, the production speed is 5-30 meters per minute, and the power of the equipment is 70 kW. The description also shows other models of this equipment, and their prices differ from each other.

Basic parameters
Model	US-XYPE-2LB-1200	US-XYPE-2LB-1600	US-XYPE-2LB-1800	US-XYPE-2LB-2000	US-XYPE-2LB-2500	US-XYPE-2LB-3000	US-XYPE-2LB-3500
Max. width	1200 mm
Screw diameter	⌀ 65 mm ⌀ 50 mm	⌀ 70 mm ⌀ 55 mm	⌀ 70 mm ⌀ 60 mm	⌀ 75 mm ⌀ 65 mm	⌀ 80 mm ⌀ 70 mm	⌀ 90 mm ⌀ 80 mm	⌀ 105 mm ⌀ 85 mm
Extruder motor power	18.5 kW 11 kW	22 kW 15 kW	22 kW 18.5 kW	30 kW 18.5 kW	30 kW 22 kW	45 kW 30 kW	55 kW 37 kW
Take-up motor power	1.5 kW	2.2 kW	2.2 kW	2.2 kW	3 kW	3 kW	3 kW
Vacuum pump	1.1 kW	1.5 kW	1.5 kW	2 kW	2.2 kW	3 kW	3 kW
Speed	5-30 m/min						5-25 m/min
Power	70 kW	90 kW	105 kW	115 kW	135 kW	158 kW	200 kW
