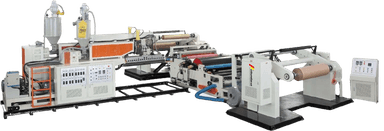

Name: Co-extrusion coating and laminating machine US-JZLF95(65)*2-1500
SKU: 916
Availability: PreOrder

Just as the equipment is different, the lamination equipment is divided into different models. This US-JZLF95 (65)*2-1500 can operate 150 meters per minute, a layer lamination thickness is 0.01-0.03 mm. Lamanification width reaches 800 mm to 1500 mm.

Basic parameters
Model	*US-JZLF95 (65)2-1500**
Basic materials	PE, BOPP, PP, paper, aluminium foil, unwoven fabric
Coating materials	PE, PP and etc.
Coating width	800-1500 mm
Thickness of coating	0.01-0.03 mm (single layer)
Evenness of coating	error: ± 5%
Mechanism speed	0-150 m/min
Unwind&rewind max. diameter	unwinding: ⌀ 1000 mm winding: ⌀ 1200 mm

Basic parameters
Model	*US-JZLF95 (65)2-1500**
Basic materials	PE, BOPP, PP, paper, aluminium foil, unwoven fabric
Coating materials	PE, PP and etc.
Coating width	800-1500 mm
Thickness of coating	0.01-0.03 mm (single layer)
Evenness of coating	error: ± 5%
Mechanism speed	0-150 m/min
Unwind&rewind max. diameter	unwinding: ⌀ 1000 mm winding: ⌀ 1200 mm
