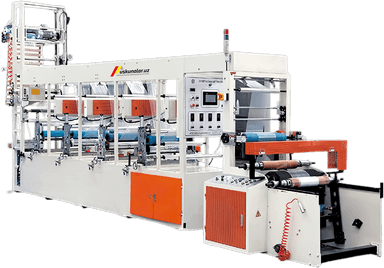

Film blowing and printing machine US-JSY-600 (2)
By Order
Country of origin: China
This US-JSY-600 (2) model equipment differs from this US-JSY-600 (1) model equipment only in size, weight and appearance. In both, the production speed is from 20 kg to 40 kg per hour, and the width of the manufactured product is 100-550 mm. The total weight of the equipment is 3700 kg, length 8000 mm, width 1600 mm and height 3500 mm.
* Buy at factory price!
Delivery will be made in 20-40 days
Uskunalar.uz logistics
If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.
With qualified technological services
Installation and commissioning service is provided
Convenient payment method for you
Cash, card, or money transfer
This US-JSY-600 (2) model equipment differs from this US-JSY-600 (1) model equipment only in size, weight and appearance. In both, the production speed is from 20 kg to 40 kg per hour, and the width of the manufactured product is 100-550 mm. The total weight of the equipment is 3700 kg, length 8000 mm, width 1600 mm and height 3500 mm.
Model:
US-JSY-600 (2)
Speed:
20-40 kg/hour
Main motor power:
11 kW
Dimension:
8000*1600*3500 mm
Weight:
3700 kg
This US-JSY-600 (2) model equipment differs from this US-JSY-600 (1) model equipment only in size, weight and appearance. In both, the production speed is from 20 kg to 40 kg per hour, and the width of the manufactured product is 100-550 mm. The total weight of the equipment is 3700 kg, length 8000 mm, width 1600 mm and height 3500 mm.
Basic parameters | ||
![]() |
Model | US-JSY-600 (2) |
Screw diameter.................................................................................... | ⌀ 50 mm.............................................................................................. | |
Blowing width | 100-550 mm | |
Printing width | 600 mm | |
Film thickness | LDPE: 0.012-0.3 mm HDPE: 0.01-0.2 mm | |
Production capacity | 20-40 kg/hour | |
Printing speed | 0-40 m/min | |
Motor power | 11 kW | |
Drying color | 2 kW | |
Heating power | 12 kW | |
Weight | 3700 kg | |
Dimension | 8000*1600*3500 mm |
