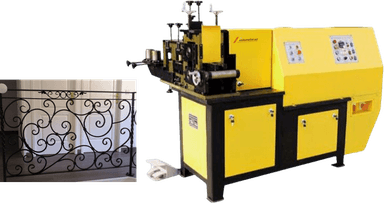

Cold rolling embossing machine US-AB-DL60B

Name: Cold rolling embossing machine US-AB-DL60B
SKU: 986
Price: 100 USD
Availability: InStock

1,600+views

Metal processing

ID number: 986

In Stock

1,600+views

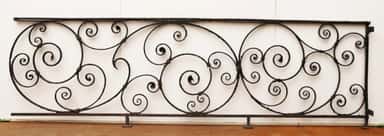

This US-AB-DL60B equipment is used in the production of patterned fences, metal fences. The equipment creates a pattern on the metal by forging. The power of the equipment operating at 380V voltage is 7.5 kW. The speed of metal processing reaches up to 466 m per hour. The weight is 950 kg, and the dimensions are 19807101500 mm.

EXW

$100

1,473,784.0 sum

1% for conversion services
0.5% for bank services
12% VAT (not calculated in dollars)

Model:

US-AB-DL60B

Speed:

1-466 m/min

Power:

7.5 kW

Dimension:

1980*710*1500 mm

Weight:

950 kg

This US-AB-DL60B equipment is used in the production of patterned fences, metal fences. The equipment creates a pattern on the metal by forging. The power of the equipment operating at 380V voltage is 7.5 kW. The speed of metal processing reaches up to 466 m per hour. The weight is 950 kg, and the dimensions are 1980*710*1500 mm.

Basic parameters
	Model	US-AB-DL60B
	Max. work ability	flat iron - ≤ 10 mm*60 mm
		square steel - ≤ 25 mm*25 mm
		square tube - ≤ 60 mm*60 mm
	Rolling speed....................................................................................	1-466 m/hour................................................................................................
	Power	7.5 kW
	Voltage	380V
	Dimension	19807101500 mm
	Machine weight	950 kg
