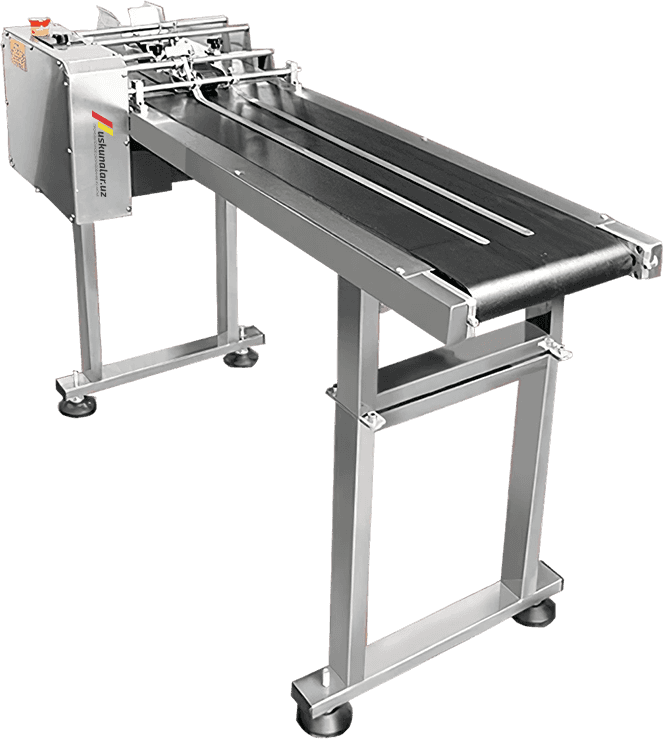

Name: US-GS243 Friction type separate paper/bag conveyor machine (0-20m/min)
SKU: 1980
Availability: PreOrder

⚙️ Machine Overview

The US-GS243 friction type separate paper/bag conveyor machine is designed for stable feeding and smooth transportation of separated paper pieces, cards, and bags in continuous production and coding lines.

⚙️ Electrical Configuration

This model works on 220V, 50/60Hz with 250W power, offering reliable operation with energy-efficient performance for daily industrial use.

⚙️ Dual-Speed Capacity

The machine supports two working performance ranges: 0–150 times/min for feeding cycles and 0–20m/min conveying speed, allowing flexible control depending on product type and line speed.

⚙️ Material Thickness Compatibility

It can handle bag or card thickness from 0.02–1mm, making it suitable for thin film packaging as well as thicker card-based materials.

⚙️ Supported Width and Length Range

The machine supports materials with width 40–300mm and length 50–320mm, covering a wide range of packaging sizes used in manufacturing.

⚙️ Conveyor Length Options

Conveyor length is available in 1000mm or 1500mm, enabling users to select the appropriate configuration for their workspace and production process.

⚙️ Compact Industrial Dimensions

With machine dimensions of 150 × 45 × 61cm, it fits well into packaging zones and works efficiently as a supporting conveyor unit.

⚙️ Applications and Workflow Benefits

Commonly used in packaging, labeling, coding, printing, and sorting operations, helping separate and move products smoothly while reducing manual handling and improving production efficiency.

🧾 Machine Introduction
The Friction Type Separate Paper/Bag Conveyor Machine US-GS243 is designed for smooth feeding and transferring of paper cards, labels, and packaging bags for coding/printing processes. With overall dimensions 150×45×61cm, it fits well into compact production lines.

⚡ Voltage & Power Performance
This conveyor system operates on 220V 50/60Hz and consumes 250W, offering stable operation and energy-efficient performance for continuous daily use.

🚀 Speed & Productivity
The machine supports dual working performance: 0–150 times/min feeding capacity and conveyor speed of 0–20m/min, making it suitable for both slow and high-throughput packaging lines.

📐 Material Thickness Range
It can handle bag/card thickness from 0.02–1mm, meaning it works efficiently with thin plastic bags, paper sheets, printed cards, and light cartons without damaging the material.

📏 Supported Width & Length Sizes
The allowable width range is 40–300mm, and the length range is 50–320mm, which covers many standard packaging formats used in retail and industrial applications.

🛣️ Conveyor Length Options
The conveyor belt comes with selectable lengths: 1000mm or 1500mm, allowing customers to choose a suitable size according to production layout and workflow needs.

🏭 Industries & Applications
Ideal for food packaging, snacks, bakery products, pharmaceutical boxes, cosmetics labeling, stationery products, card feeding, and any line that requires stable bag/paper separation and conveying.

🛠️ Friction Feeding Advantage
The friction separation mechanism ensures consistent single-piece feeding, reduces double-feeding risks, improves print alignment, and increases efficiency in connected printers and coding machines.
