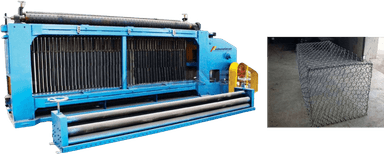

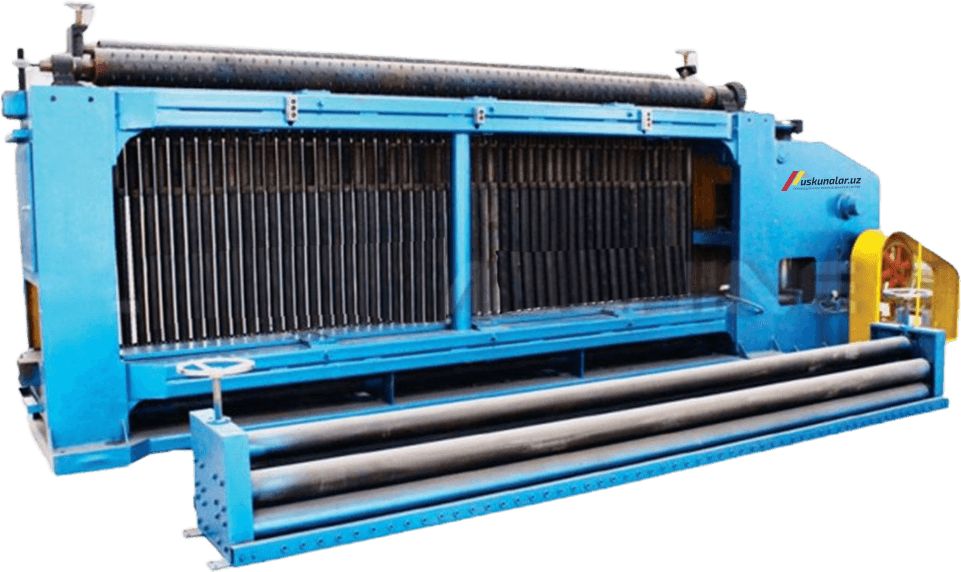

Gabion mesh machine US-LNWL23-60-2

Name: Gabion mesh machine US-LNWL23-60-2
SKU: 1002
Availability: PreOrder

+2,100views

Production of wire products

ID number: 1002

By Order

+2,100views

Country of origin: China

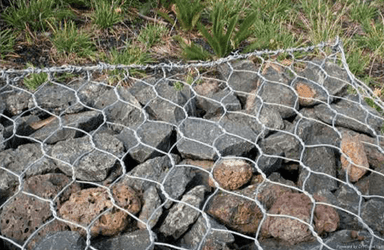

This US-LNWL23-60-2 equipment manufacturing mesh is different from others, that is, this mesh is used to create a wall. The grid is made in different sizes and the inside of the mesh is filled with stones to form a wall. The size of mesh cells is 60*80 mm, the total mesh width is produced up to 2300 mm. The motor power of the equipment is 11 kW and the production speed reaches 165 m/h.

* Contact us for pricing!

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Model:

US-LNWL23-60-2

Speed:

165 m/hour

Power:

11 kW

Mesh size:

60*80 mm

This US-LNWL23-60-2 equipment manufacturing mesh is different from others, that is, this mesh is used to create a wall. The grid is made in different sizes and the inside of the mesh is filled with stones to form a wall. The size of mesh cells is 60*80 mm, the total mesh width is produced up to 2300 mm. The motor power of the equipment is 11 kW and the production speed reaches 165 m/h.

Basic parameters
	Model.....................	Mesh size (mm).......................	Max. width (mm)...............	Wire diameter (mm).....................	Twisting number ...............	Motor power (kW)...............	Working speed (m/h)................
	US-LNWL23-60-2	60*80	2300	1.6-3.0	3	11	165
	US-LNWL23-80-2	80*100		1.6-3.0			195
	US-LNWL23-100-2	100*120		1.6-3.5			225
	US-LNWL23-120-2	120*150		1.6-3.2			255
	US-LNWL33-60-2	60*80	3300	1.6-2.8		15	165
	US-LNWL33-80-2	80*100		1.6-3.0			195
	US-LNWL33-100-2	100*120		1.6-3.2			225
	US-LNWL33-120-2	120*150		1.6-3.5			255
	US-LNWL43-60-2	60*80	4300	1.6-2.8		22	165
	US-LNWL43-80-2	80*100		1.6-3.0			195
	US-LNWL43-100-2	100*120		1.6-3.0			225
	US-LNWL43-120-2	120*150		1.6-3.2			255
