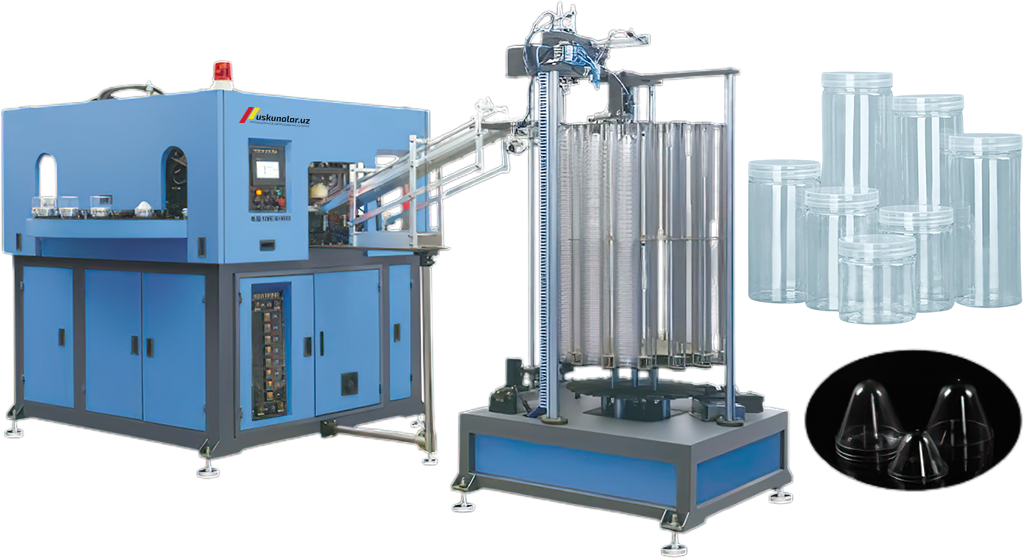

Full automatic blow molding machine US-DY-1000AK

Name: Full automatic blow molding machine US-DY-1000AK
SKU: 1069
Price: 58000 USD
Availability: PreOrder

+2,200views

Production of plastic products

ID number: 1069

By Order

+2,200views

Country of origin: China

Almost all products are packed in plastic containers. Not only liquids, but also products in the form of granules are used for the production of plastic containers. This US-DY-1000AK equipment is fully automatic and can produce bottles up to 2 liters. And the production speed is able to produce 800 to 1000 plastic containers per hour. The weight of the equipment is 1850 kg, and the preform loading equipment is 800 kg. Equipment size: 195018502100 mm. Preform equipment size: 135012502200 mm.

CIP

$58,000

850,318,280.0 sum

Delivery will be made in 20-40 days

Uskunalar.uz logistics

If the equipment is not available in stock, its production at the factory will take an additional 15–40 days.

With qualified technological services

Installation and commissioning service is provided

Convenient payment method for you

Cash, card, or money transfer

Model:

US-DY-1000AK

Capacity:

800-1000 pcs/hr

Power:

26 kW

Size:

1950*1850*2100 mm

Weight:

1850 kg

Almost all products are packed in plastic containers. Not only liquids, but also products in the form of granules are used for the production of plastic containers. This US-DY-1000AK equipment is fully automatic and can produce bottles up to 2 liters. And the production speed is able to produce 800 to 1000 plastic containers per hour. The weight of the equipment is 1850 kg, and the preform loading equipment is 800 kg. Equipment size: 1950*1850*2100 mm. Preform equipment size: 1350*1250*2200 mm.

Plastic container parameters
	Max. container volume................................................................................	2 liter........................................................................................................
	Max. neck diameter	110 mm
	Max. container diameter	110 mm
	Max. container height	300 mm
	Basic parameters
	Clamping force	12000 kg
	Cavity spacing	120 mm
	Number of cavity	1
	Carriage unit	26
	Theoretical output	800-1000 bph
	Total power	26 kW
	Heating power	16 * 1.5 kW= 24 kW
	Blowing pressure	20-30 kg/cm²
	High pressure air consumption	1600 liter/min
	Machine dimension	195018502100 mm
	Machine weight	1850 kg
	Preform loader dimensions	135012502200 mm
	Preform loader weight	800 kg
