Name: ABA film blowing machine US-JDDC-45*2-800
SKU: 1166
Availability: PreOrder

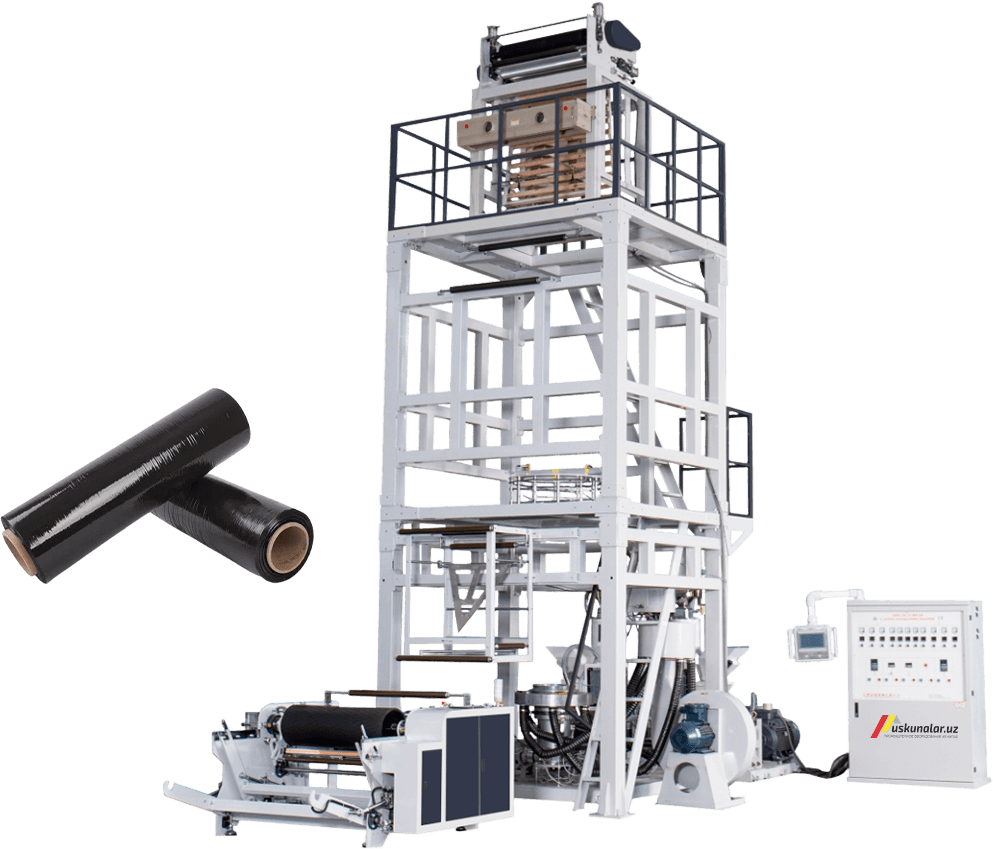

This US-JDDC-45*2-800 model extruder is capable of producing 20 kg to 60 kg per hour polyethylene film rolls. The width of the produced film is from 100 mm to 550 mm. The weight of the extruder is 2500 kg, its dimensions are: length 5200 mm, width 2200 mm and height 4800 mm. The description also includes other models of this equipment. Their prices and parameters differ from each other.

This US-JDDC-45*2-800 model extruder is capable of producing 20 kg to 60 kg per hour polyethylene film rolls. The width of the produced film is from 100 mm to 550 mm. The weight of the extruder is 2500 kg, its dimensions are: length 5200 mm, width 2200 mm and height 4800 mm. The description also includes other models of this equipment. Their prices and parameters differ from each other.

Basic parameters
	Model	*US-JDDC-452-800**	*US-JDDC-502-800**	*US-JDDC-552-800**	*US-JDDC-652-800**
	Raw material	HDPE, LDPE, LLDPE
	Film thickness	HDPE: 0.005-0.025 мм
	Film thickness	LDPE: 0.02-0.09 мм
	Film width......................	100-550 мм..........................	200-750 мм...........................	400-950 мм..........................	600-1150 мм..............................
	Screw diameter	⌀45 мм * 2	⌀50 мм * 2	⌀55 мм * 2	⌀55 мм * 2
	Production speed	20-60 кг/ч	30/80 кг/ч	30/100 кг/ч	40-120 кг/ч
	Installed power	40 кВт	50 кВт	70 кВт	80 кВт
	Total weight	2500 кг	3000 кг	4000 кг	5000 кг
	Size	520022004800 мм	520024005200 мм	520026005800 мм	550030006800 мм
