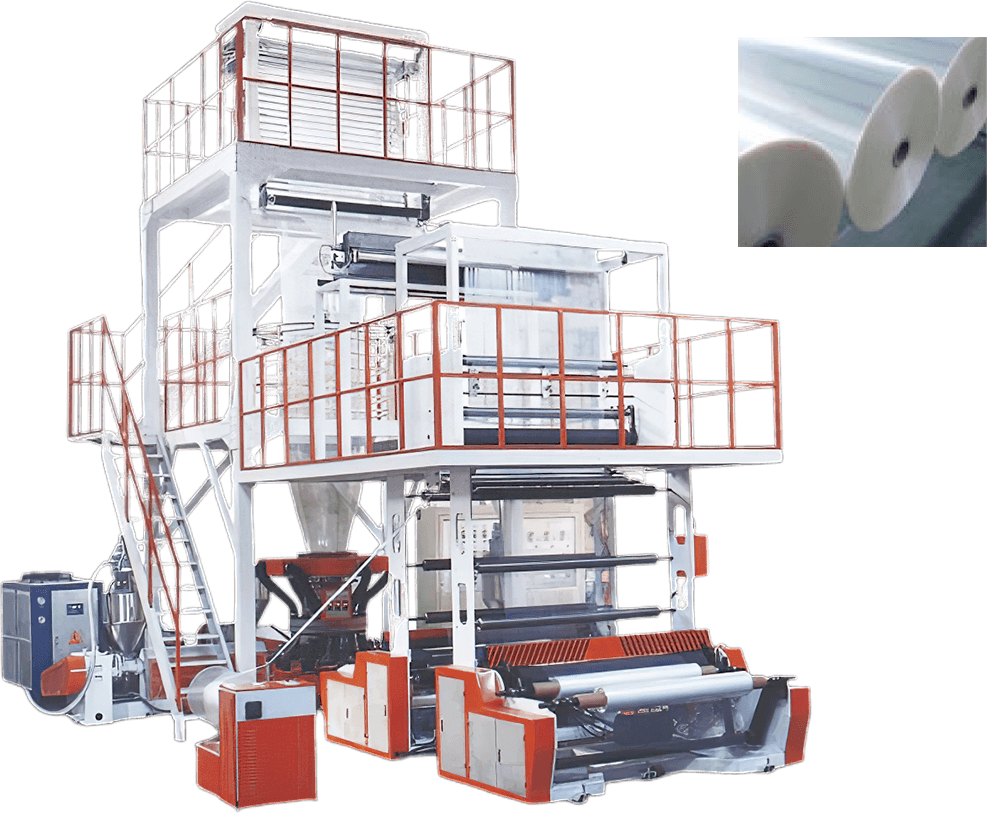

Name: 3 layer film blowing extruder machine US-SJ*3-FM1100
SKU: 1167
Availability: PreOrder

With an installed capacity of 90 kW, this US-SJ*3-FM1100 model extruder is capable of producing up to 80 kg of polyethylene film per hour. The width of the produced film is 1000 mm. The dimensions of the extruder weighing 5.5 tons are: length 6600 mm, width 4100 mm and height 5800 mm. The description also includes other models of this equipment. Their prices and parameters differ from each other.

Общие параметры
	Model	*US-SJ3-FM1100**	*US-SJ3-FM1350**	*US-SJ3-FM1700**
	Screw diameter	⌀552 ; ⌀601	⌀602 ; ⌀651	⌀652 ; ⌀701
	Screw speed	15-120 rpm
	Main motor power	15 kW * 2 ; 18.5 kW * 1	18.5 kW * 2 ; 22 kW * 1	22 kW * 2 ; 30 kW * 1
	Extrusion output (single)	80 kg/hour	100 kg/hour	140 kg/hour
	Single layer film thickness	0.02 - 0.15 mm
	Film max. width	1000 mm	1200 mm	1500 mm
	Installed power	90 kW	105 kW	120 kW
	Size	660041005800 mm	680043006000 mm	700048007500 mm
	Weight.................................	5.5 tonna...................................	6.2 tonna.....................................	7.5 tonna.........................................
