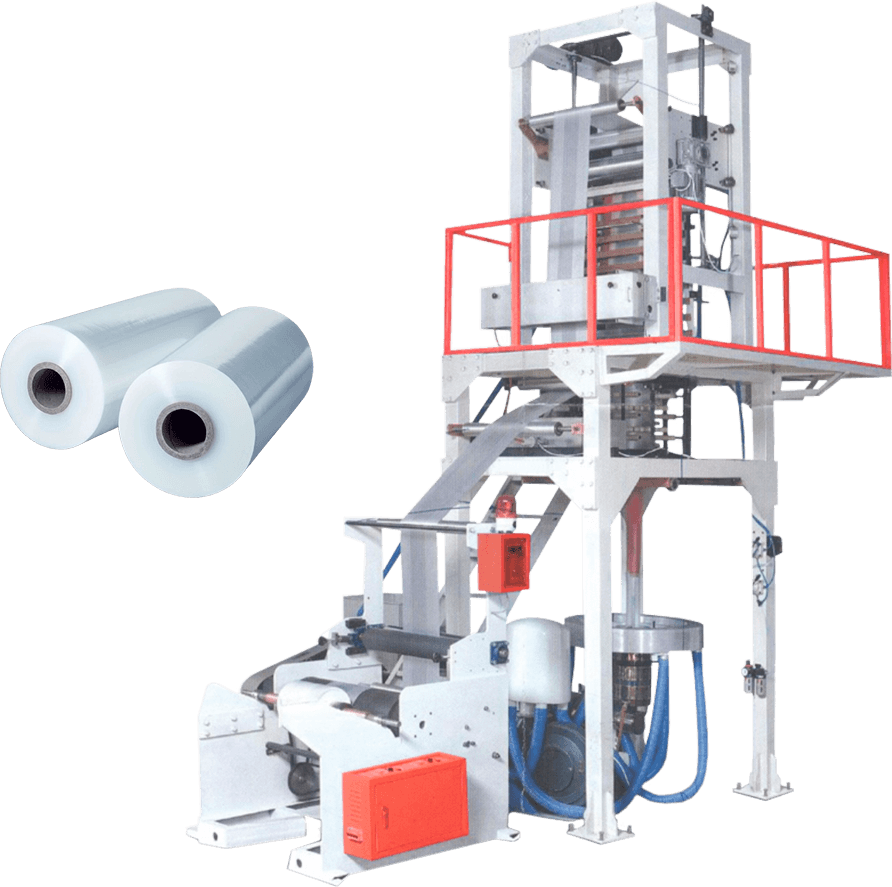

High speed film blowing machine set US-SJ-45

This US-SJ-45 model extruder has a production rate of up to 55 kg of polyethylene roll film per hour. This equipment with a total power of 38 kW weighs 3.5 tons. The maximum width of the produced film is 600 mm, and the overall dimensions of the equipment are 3000*2800*4200 mm. The description also includes other models of this extruder. Their parameters and prices differ from each other.



Basic parameters
	Model	US-SJ-45	US-SJ-55	US-SJ-65
	Screw diameter	⌀45 mm	⌀55 mm	⌀65 mm
	Screw speed	15-100 rpm
	Main motor power	15 kW-18.5 kW	18.5 kW-22 kW	22 kW-30 kW
	Extrusion output (single)	55 kg/hour	80 kg/hour	100 kg/hour
	Single sided thickness of film	0.01 - 0.10 mm
	Max. layflat width of film	600 mm	800 mm	1000 mm
	Electric total capacity	38 kW	48 kW	65 kW
	Overall dimension	3000*2800*4200 mm	3500*3500*4800 mm	4000*4000*6000 mm
	Weight..................................	3.5 ton....................................	4.0 ton...................................	4.5 ton.....................................
