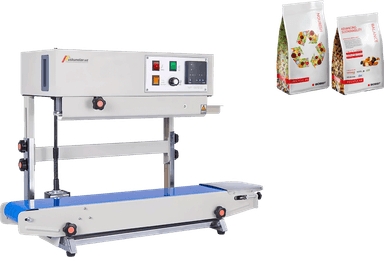

US-GS199-900V Vertical continuous sealing machine (0-15 m/min)

⚙️ Machine Purpose

The US-GS199-900V vertical continuous sealing machine is designed for efficient sealing of standing and filled bags, ensuring clean and reliable closure in packaging operations.

⚙️ Power Supply Compatibility

This model operates on 220V, 50/60Hz, making it suitable for standard industrial and commercial electrical systems.

⚙️ Energy Output

With a power rating of 1.2KW, the machine delivers stable heating performance while maintaining energy efficiency during continuous use.

⚙️ Operating Speed

The adjustable conveyor system supports sealing speeds from 0 to 15 meters per minute, allowing flexible production control.

⚙️ Bag Size Capacity

It can process bags with a maximum length of 250mm and width up to 600mm, covering a wide range of vertical packaging needs.

⚙️ Material Thickness Handling

The sealing mechanism works effectively with film thicknesses between 0.02mm and 0.08mm, producing smooth and strong seal lines.

⚙️ Temperature Adjustment

The heating unit offers a wide temperature range from 0 to 300°C, enabling precise adaptation to different plastic materials.

⚙️ Structure and Custom Options

With compact dimensions of 85 × 40 × 37cm and a load tolerance of 5KG, this model also supports customization based on specific production requirements.
