By Order

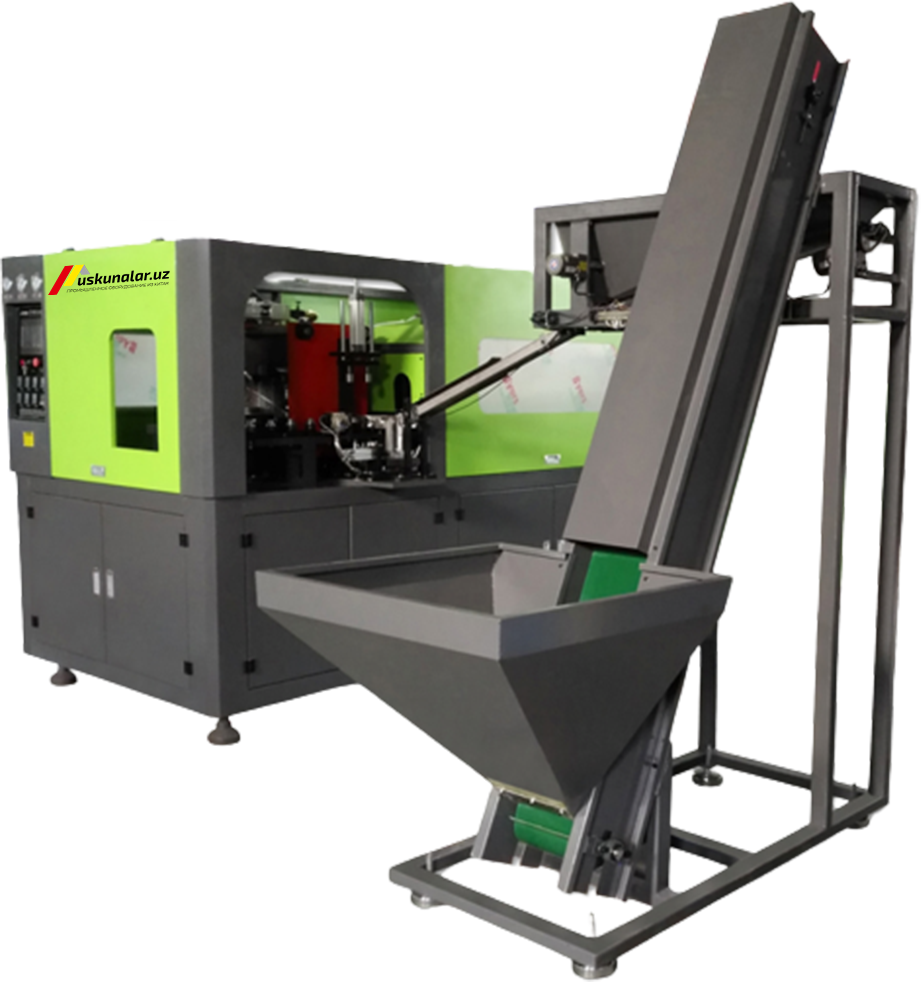

This US-LGD-2-15 equipment serves for the production of plastic bottles. The production speed of the equipment is 1800-2400 pieces per hour and produces plastic bottles of 0.3, 0.5, 1 and up to 1.5L. Regarding some parameters of the equipment, the maximum heating power is 42kw, the main compressor power is 43kw, and the power consumption is 10-15kw.
| Basic parameters | |
| Number of cavity | 2 |
| Theoritical output | 1800-2400pcs/hour |
| Max. container volume | 1.5L |
| Max. neck diameter | 45mm |
| Max. container diameter | 100mm |
| Max. container height | 330mm |
| Mould thickness | 210mm |
| Heat lamp amount | 28 |
| Max. heating power | 42KW |
| Power of main blower | 43KW |
| Actual power consumption | 10-15KW |
| Working pressure | 0.8Mpa |
| Low pressure consuming | 2000 ltr/min |
| Blowing pressure | ≤3.5 |
| High pressure consuming | 1200ltr/min |
| Measurement of main blower | 2700*1600*1800mm |
| Measurement of elevator | 1800*900*2240mm |
| Weight of main blower | 2200kg |
By Order
This US-LGD-2-15 equipment serves for the production of plastic bottles. The production speed of the equipment is 1800-2400 pieces per hour and produces plastic bottles of 0.3, 0.5, 1 and up to 1.5L. Regarding some parameters of the equipment, the maximum heating power is 42kw, the main compressor power is 43kw, and the power consumption is 10-15kw.
| Basic parameters | |
| Number of cavity | 2 |
| Theoritical output | 1800-2400pcs/hour |
| Max. container volume | 1.5L |
| Max. neck diameter | 45mm |
| Max. container diameter | 100mm |
| Max. container height | 330mm |
| Mould thickness | 210mm |
| Heat lamp amount | 28 |
| Max. heating power | 42KW |
| Power of main blower | 43KW |
| Actual power consumption | 10-15KW |
| Working pressure | 0.8Mpa |
| Low pressure consuming | 2000 ltr/min |
| Blowing pressure | ≤3.5 |
| High pressure consuming | 1200ltr/min |
| Measurement of main blower | 2700*1600*1800mm |
| Measurement of elevator | 1800*900*2240mm |
| Weight of main blower | 2200kg |
