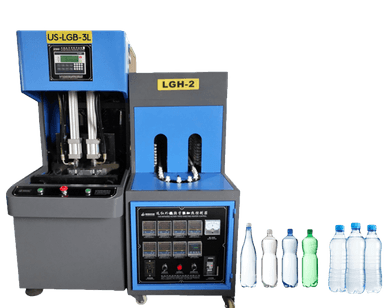

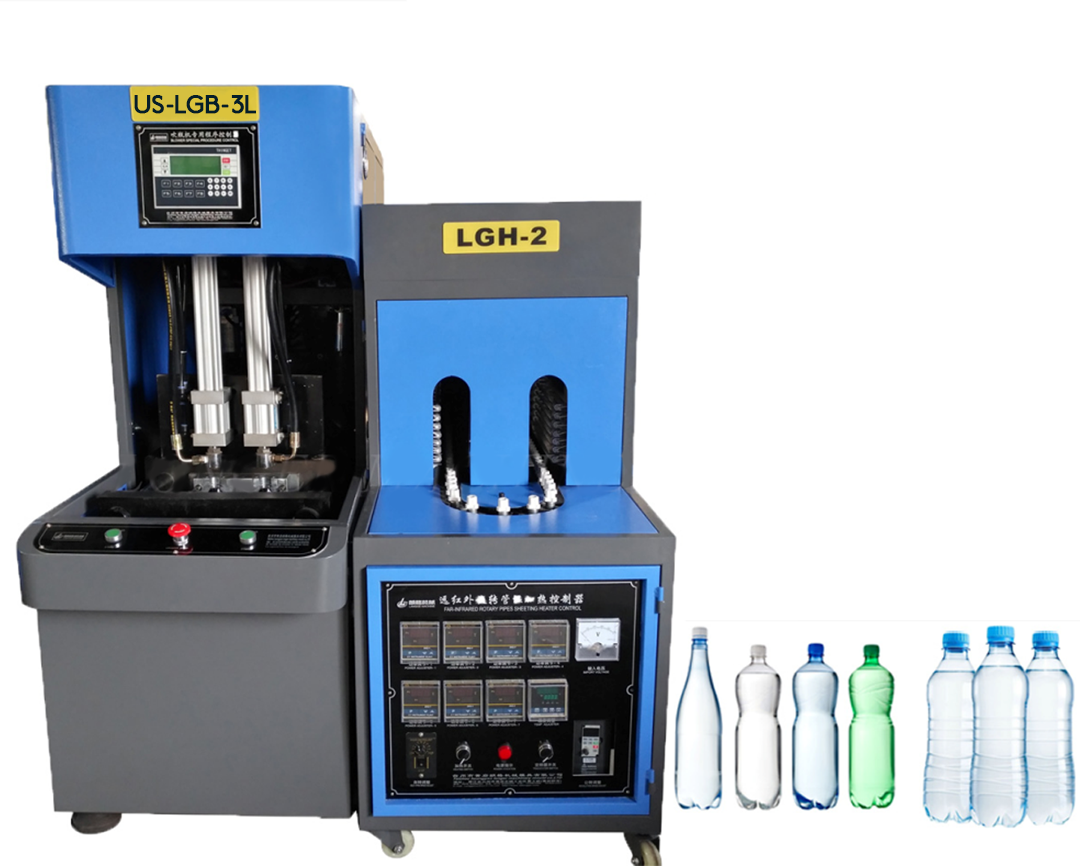

Name: Automatic plastic bottle production equipment US-LGB-3L
SKU: 747
Availability: PreOrder

This US-LGB-3L equipment is adapted for the production of plastic bottles. The equipment produces plastic bottles up to 3L, with a production capacity of 800-1000 per hour. The main compressor power is 14.5kw, pressure is 3Mpa and weight is 800kg.

Basic parameters
Theoritical output	800-1000 pcs/hour
Max. container volume	3L
Max. neck diameter	90mm
Max. container diameter	110mm
Max. container height	340mm
Mould thickness	100-180mm
Heat lamp amount	28
Max. heating power	14kw
Main blower power	14.5kw
Power consumption	6-8kw
Working pressure	0.8Mpa
Low pressure consuming	400 L/min
Blowing pressure	3Mpa
High pressure consuming	400 L/min
Measurement of main blower	16506101550mm
Measurement of preheater	17006001380mm
Weight of main blower	800kg

0 products

0 products

Automatic plastic bottle production equipment US-LGB-3L

Production of plastic products

Mold thickness:

Main compressor size:

Model:

Working speed:

Product size:
