By Order

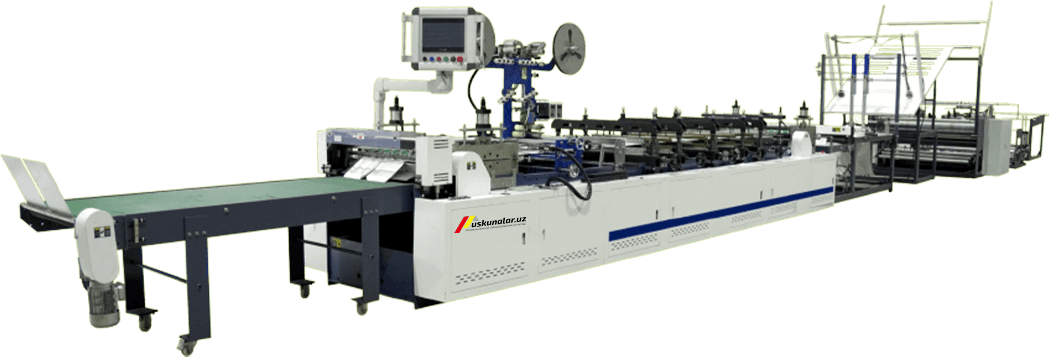

This US-XYXFD-800 model is a large machine for the production of envelope-shaped packages from bubble film. Bubble polyethylene film and aluminum foil are used in the production of the product. The equipment can produce 100-200 meters per minute in 1-line production, and 200-400 meters per minute in 2-line production. It has a total power of 26 kW, operates at a voltage of 380V, and has a total size of 19 * 2.8 * 3.4 m. The description also shows another model of this equipment, and their prices differ from each other.
| Basic parameters | ||
| Model | US-XYXFD-800 | US-XYXFD-1000 |
| Suitable material | bubble film (25-150g), tape | |
| Material requirements | PE laminated film, aluminium foil | |
| Max. feeding diameter | bubble film ⌀ 1500mm | bubble film ⌀ 1500mm |
| Max. feeding width | bubble film ≤ 1500mm | bubble film ≤ 1800mm |
| Max. bag length | ≤ 750mm (including the tounge of bag) | ≤ 950mm (including the tounge of bag) |
| Max. bag width | ≤ 800mm | ≤ 800mm |
| Speed of bag making |
100-200m/min (single line) 200-400m/min (double line) |
80-160m/min (single line) 160-320m/min (double line) |
| Total power | 26 kW | 28 kW |
| Voltage | 380V, 3 phase | 380V, 3 phase |
| Dimension | 19 * 2.8 * 3.4 m | 19 * 3.0 * 3.4 m |
By Order
This US-XYXFD-800 model is a large machine for the production of envelope-shaped packages from bubble film. Bubble polyethylene film and aluminum foil are used in the production of the product. The equipment can produce 100-200 meters per minute in 1-line production, and 200-400 meters per minute in 2-line production. It has a total power of 26 kW, operates at a voltage of 380V, and has a total size of 19 * 2.8 * 3.4 m. The description also shows another model of this equipment, and their prices differ from each other.
| Basic parameters | ||
| Model | US-XYXFD-800 | US-XYXFD-1000 |
| Suitable material | bubble film (25-150g), tape | |
| Material requirements | PE laminated film, aluminium foil | |
| Max. feeding diameter | bubble film ⌀ 1500mm | bubble film ⌀ 1500mm |
| Max. feeding width | bubble film ≤ 1500mm | bubble film ≤ 1800mm |
| Max. bag length | ≤ 750mm (including the tounge of bag) | ≤ 950mm (including the tounge of bag) |
| Max. bag width | ≤ 800mm | ≤ 800mm |
| Speed of bag making |
100-200m/min (single line) 200-400m/min (double line) |
80-160m/min (single line) 160-320m/min (double line) |
| Total power | 26 kW | 28 kW |
| Voltage | 380V, 3 phase | 380V, 3 phase |
| Dimension | 19 * 2.8 * 3.4 m | 19 * 3.0 * 3.4 m |
Contact us for pricing!
