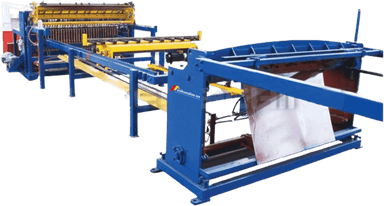

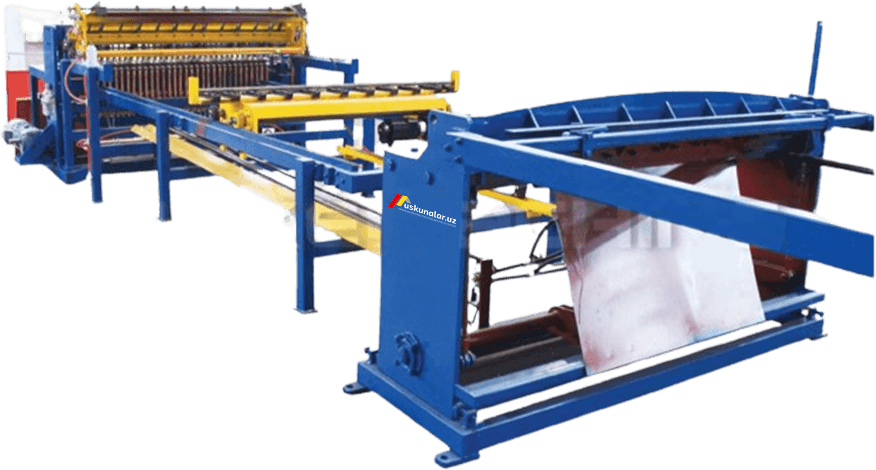

Name: Chicken cage welding machine US-DP-AW-1200E
SKU: 953
Availability: PreOrder

Model:

US-DP-AW-1200E

Welding speed (max):

120 times/min

Max. mesh width:

1200 mm

Dimension:

5.4 * 2.1 * 1.8 m

Weight:

2.5 T

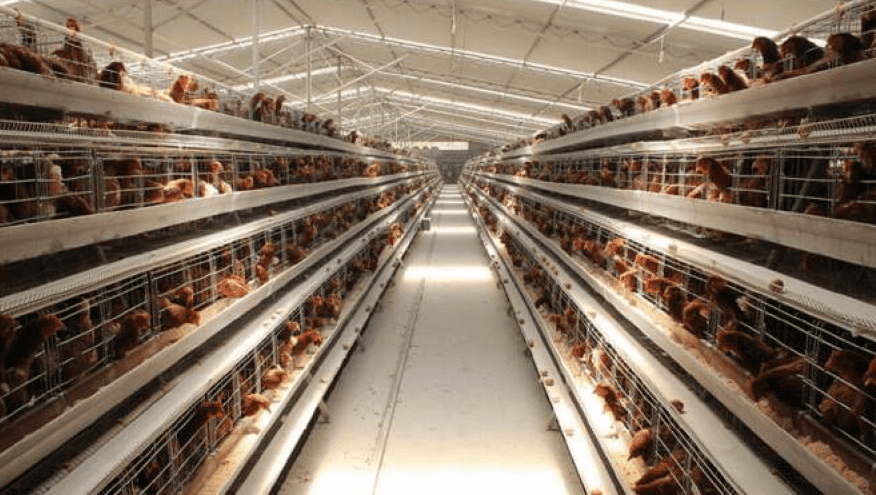

This US-DP-AW-1200E equipment performs the task of producing meshes widely used in agriculture and poultry farming. The equipment welds mesh cells with a minimum width of 20 mm and a height of 50 mm to 300 mm. Welding speed reaches 120 times per minute. The diameter of the wire used is from 2.2 mm to 3.5 mm and the total width of the grid is 1200 mm. In the description below, there are other models of this equipment, and their parameters and prices differ from each other.

Machine	Product

Basic parameters
Model	US-DP-AW-1200E	US-DP-AW-1500E	US-DP-AW-1600E
Mesh width (max)	1200 mm	1500 mm	1600 mm
Wire diameter	2.2-3.5 mm
Line wire pitch	50-300 mm
Cross wire pitch	minimum 20 mm or smaller
Welding speed	120 times/min
Welding torch	25 pcs	30 pcs	32 pcs
Welding transformer	125 kva* 3 pcs	125 kva* 4 pcs	125 kva* 4 pcs
Machine size	5.4 * 2.1 * 1.8 m	5.4 * 2.4 * 1.8 m	5.4 * 2.5 * 1.8 m
Weight	2.5 T	3 T	3.2 T
