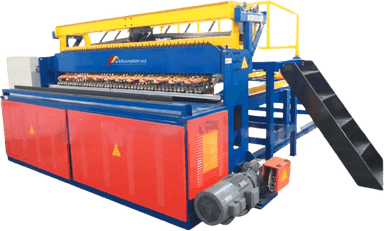

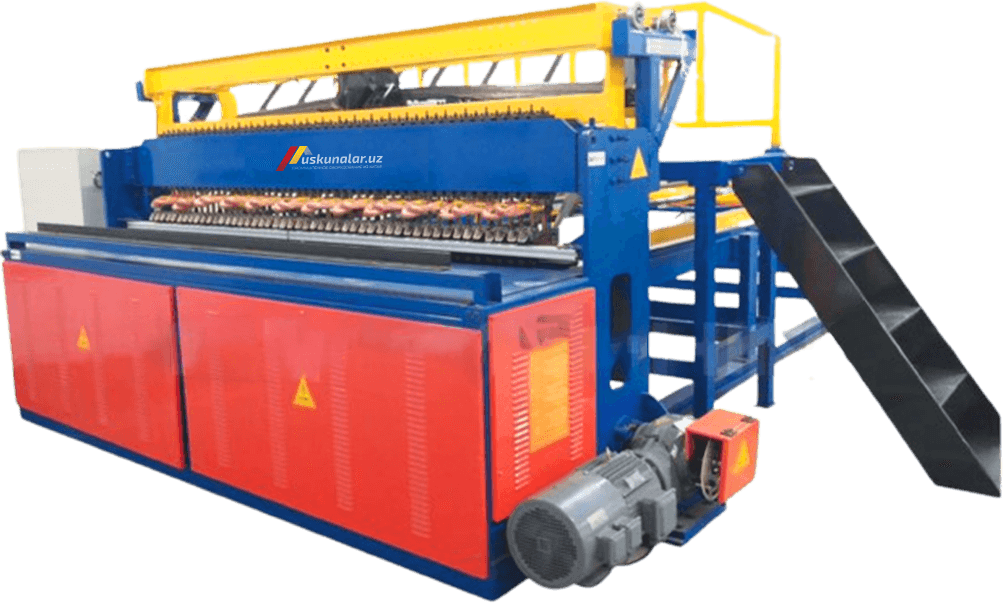

Name: Fence mesh welding machine US-DP-FP-2500A
SKU: 954
Availability: PreOrder

Model:

US-DP-FP-2500A

Welding speed (max):

80 times/min

Max. mesh length:

3.2 m

Dimension:

4.9 * 3.4 * 1.6 m

Weight:

4 T

This US-DP-FP-2500A equipment is used for the production of fences, i.e. welded barriers, and serves for welding wires. The thickness of the welding wire is 2.5-6 mm. The mesh length of the resulting net is from 50 mm to 300 mm, and the width is at least 25 mm. Equipment weight 4 T, dimensions: length 4.9 m, width 3.4 m and height 1.6 mm. The description below shows other models of this equipment, and they differ in price and parameters.

Basic parameters
	Model	US-DP-FP-2500A	US-DP-FP-3000A
	Wire diameter	2.5-6 mm
	Line wire pitch.................................................................	50-300 mm.......................................................	76.2-300 mm....................................................
	Cross wire pitch (minimum)	25 mm	12.7 mm
	Welding width (max)	2.5 m	3 m
	Mesh length (max)	3.2 m	4 m
	Welding torch	48 pcs	41 pcs
	Welding speed (max)	80 times/min	60 times/min
	Welding transformer	150 kva * 6 pcs	150 kva * 10 pcs
	Weight	4 T	4.2 T
	Dimension	4.9 * 3.4 * 1.6 m	4.9 * 3.9 * 1.4 m
