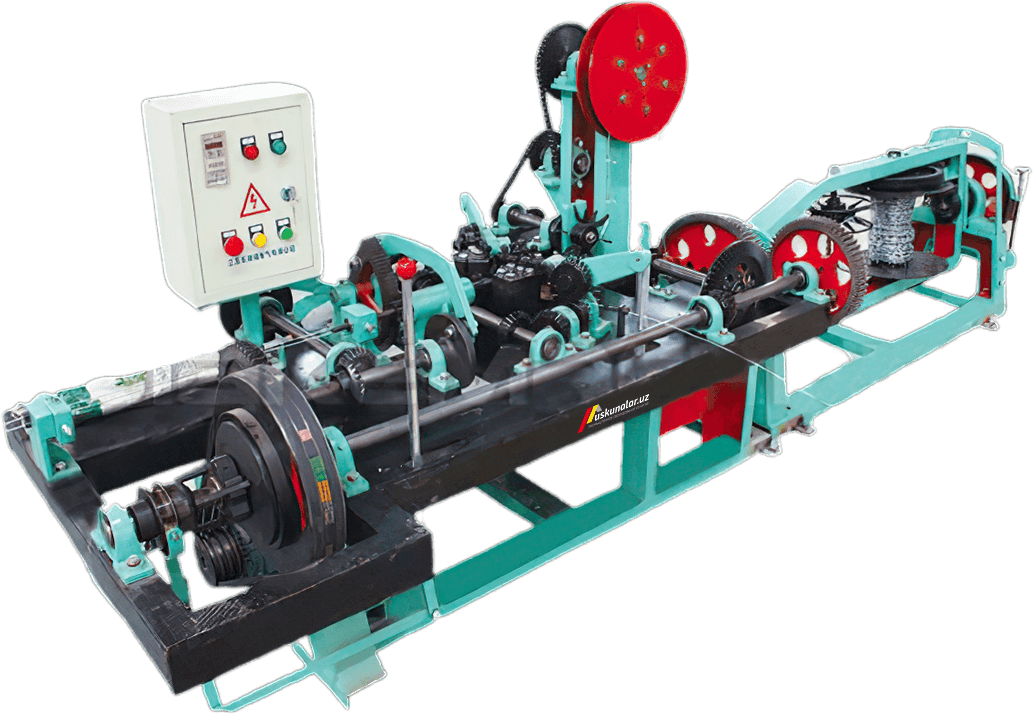

Barbed wire machine US-CS-A

Barbed wire is used to protect crops and similar areas from livestock and other objects. This US-CS-A equipment serves to produce exactly such barbed wire at a speed of 20 meters per hour. The equipment has a motor power of 2.2 kW and a total weight of 1200 kg. The equipment has two different dimensions: the first is 1950*950*1300 mm, the second is 1760*550*760 mm. The description includes other models of the equipment, and their prices and parameters differ from each other.



Basic parameters
	Model	US-CS-A	US-CS-B	US-CS-C
	Motor power	2.2 kW
	Main drive shaft speed......................................	402 rpm.........................................	355 rpm.....................................	355 rpm.......................................
	Strand wire diameter	1.6-3.0 mm	2.0-3.0 mm	1.6-2.8 mm
	Barbed wire diameter	1.6-2.8 mm
	Barb pitch	7.5-10-12.7-15 cm	7.5-10-12.7-15 cm	10-12.7-15 cm
	Twisted number	3-5	3-5	7
	Raw material	galvanized steel wire or PVC coated wire
	Production	70 kg/hour 20 m/min	40 kg/hour 17 m/min	40 kg/hour 16.5 m/min
	Weight	1200 kg	1000 kg	1000 kg
	Dimension	1950*950*1300 mm 1760*550*760 mm	3100*1000*1150 mm	3100*1000*1150 mm
